1.5/1B-AM(R)
Inlet / outlet: 38 / 25 mm
- Flow m³/h
- 3.6–21.3
- Head m
- 5–69
- Speed rpm
- 1200–3800
Complete pump set · illustrative configuration
AM SERIES
Horizontal
Slurry Pump
For abrasive slurry transfer.
The AM horizontal slurry pump handles abrasive slurry transfer in mineral processing, tailings and industrial process circuits. Compare model data, then review flow, head, solids concentration and particle size together with the wetted materials, seal and drive arrangement.
- Installation
- Horizontal, dry-installed
- Wet end
- Metal or rubber lined
- Drive
- Coupling or V-belt
- Selection
- Model performance curve
Compare AM model data
Filter six model records by flow, head and speed, then open the catalogue to check the required operating point.
Model operating ranges
Full performance tables ↗Enter the flow, head or speed you need to narrow the model list. Leave a field blank if you do not know that value.
| Model | Inlet / outlet mm | Flow range m³/h | Head range m | Speed range rpm | Data source |
|---|---|---|---|---|---|
| 1.5/1B-AM(R) | 38 / 25 | 3.6–21.3 | 5–69 | 1200–3800 | PDF pp. 6–7 ↗ |
| 2/1.5B-AM(R) | 51 / 38 | 7.2–42.48 | 7–40 | 1200–2600 | PDF pp. 7–8 ↗ |
| 3/2C-AM(R) | 76 / 51 | 21.6–69.12 | 13–38 | 1300–2100 | PDF p. 9 ↗ |
| 4/3C-AM(R) | 102 / 76 | 28.8–149.4 | 9.6–35.6 | 1000–1800 | PDF p. 10 ↗ |
| 6/4D-AM(R) | 152 / 102 | 72–324 | 12.6–44.7 | 800–1350 | PDF pp. 11–12 ↗ |
| 8/6E-AM(R) | 203 / 152 | 126–648 | 10–48 | 500–1000 | PDF pp. 13–14 ↗ |
2/1.5B-AM(R)
Inlet / outlet: 51 / 38 mm
- Flow m³/h
- 7.2–42.48
- Head m
- 7–40
- Speed rpm
- 1200–2600
3/2C-AM(R)
Inlet / outlet: 76 / 51 mm
- Flow m³/h
- 21.6–69.12
- Head m
- 13–38
- Speed rpm
- 1300–2100
4/3C-AM(R)
Inlet / outlet: 102 / 76 mm
- Flow m³/h
- 28.8–149.4
- Head m
- 9.6–35.6
- Speed rpm
- 1000–1800
6/4D-AM(R)
Inlet / outlet: 152 / 102 mm
- Flow m³/h
- 72–324
- Head m
- 12.6–44.7
- Speed rpm
- 800–1350
8/6E-AM(R)
Inlet / outlet: 203 / 152 mm
- Flow m³/h
- 126–648
- Head m
- 10–48
- Speed rpm
- 500–1000
Showing 6 model ranges. Open a catalogue page for performance data.
These ranges cover multiple catalogue speeds. A match is a starting point: check that the required flow, head and speed occur together on the model curve.
Need help choosing a model?
Include your flow, head, slurry properties and installation details.
Horizontal Slurry Pump construction and operation
The AM series uses a horizontal, cantilevered centrifugal arrangement for abrasive slurry. Metal and rubber-lined wet ends provide options to assess against particle properties, liquid chemistry and temperature.
- Serviceable wet endReplaceable liners and impeller components.
- Material options for the dutyMetal or rubber-lined construction.
- Accessible drive and bearingsPlan access for inspection and maintenance.

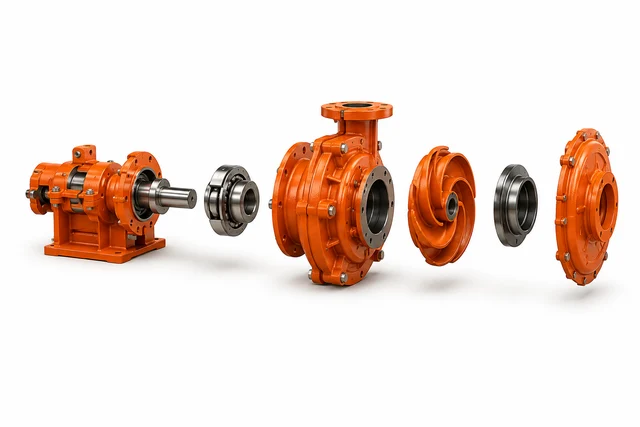

Components, materials and seals

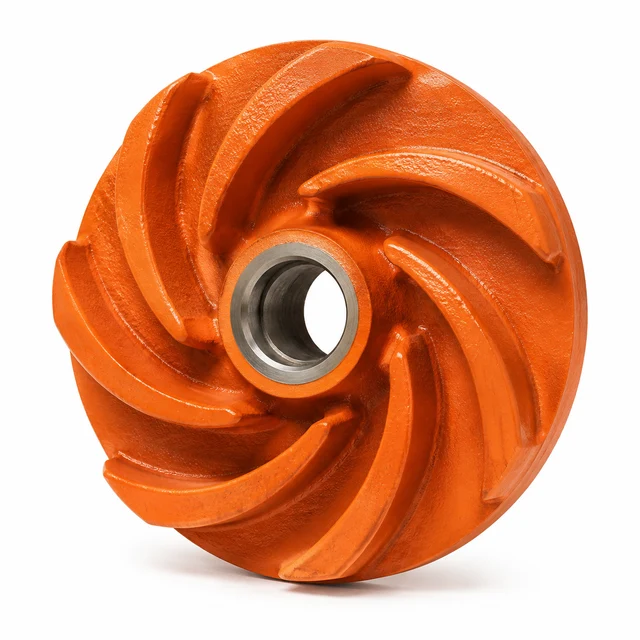

Impeller
Metal or elastomer construction selected around the solids and operating duty.

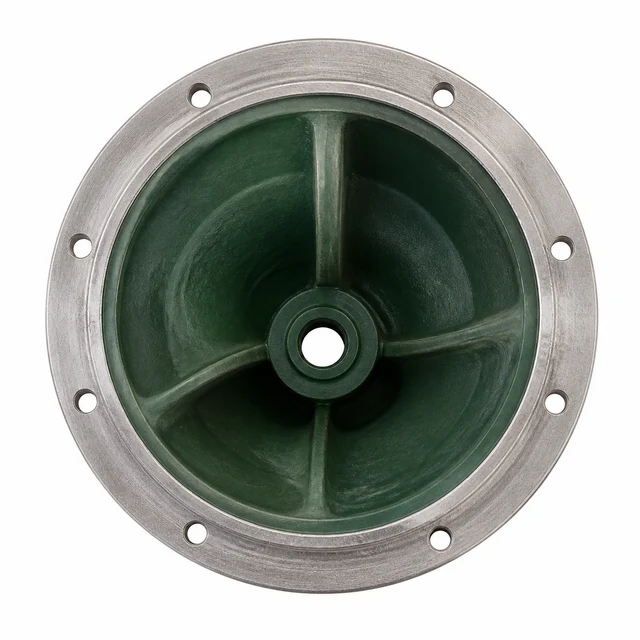

Liners & casing
Replaceable metal or rubber liners matched to the slurry chemistry and abrasion.

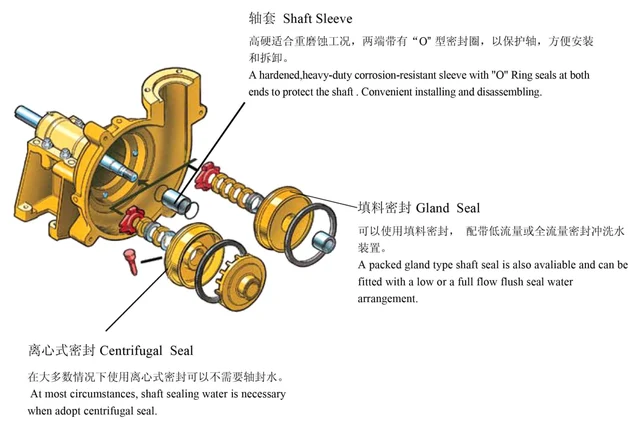

Sealing
Packing, expeller and mechanical seal options; confirm the model and duty.

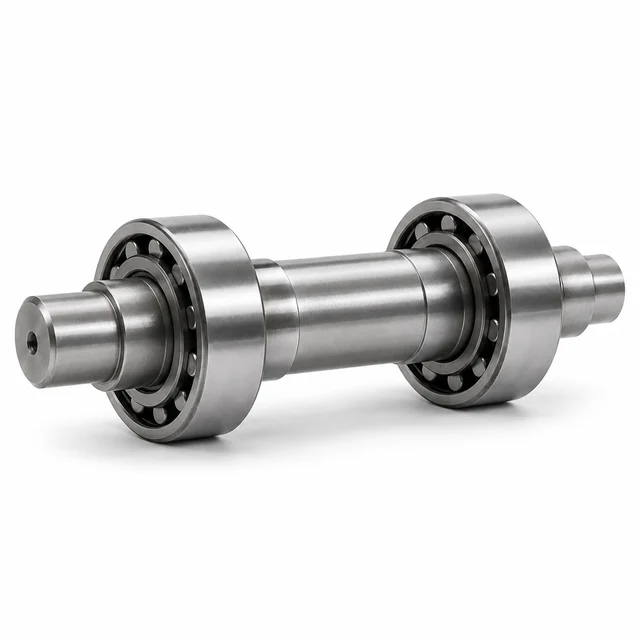

Bearing assembly
Confirm bearing access, lubrication and shaft alignment for the proposed set.
Materials, sealing & duty requirements
| Parameter | Available options / required information |
|---|---|
| Wet-end material | Metal or rubber-lined options |
| Sealing | Packing, expeller or mechanical |
| Duty information | Solids, particle size, pH and temperature |
Check the pump against your duty
- Required flow and total head
- Slurry density and concentration
- Particle size and liquid chemistry
- Available power supply
How to use the catalogue data

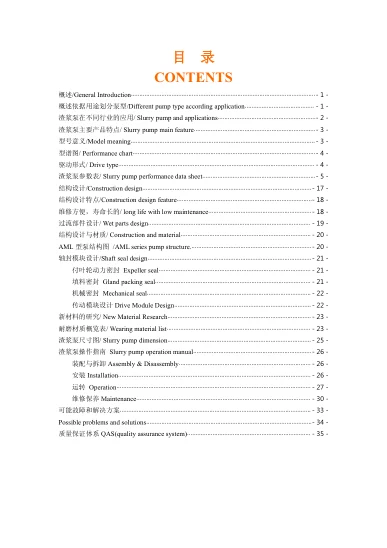

AM catalogue: features and seal options; performance chart and drive forms; model performance tables. Use the model curve and material schedule that match your operating conditions. Catalogue ranges cover different conditions and do not define one operating point.
AI-generated family illustrations. The selected configuration follows the agreed model and drawing.
Installation & drive arrangement

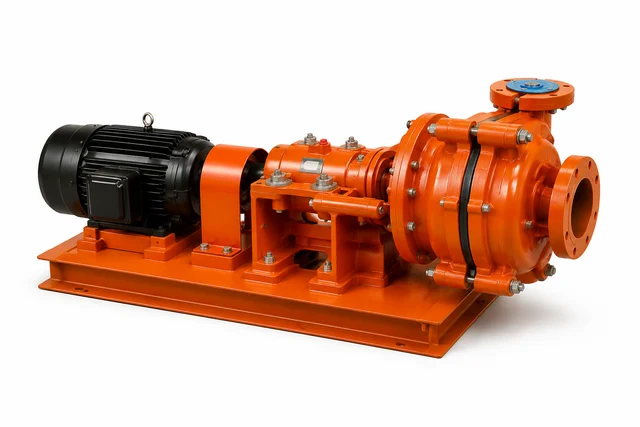

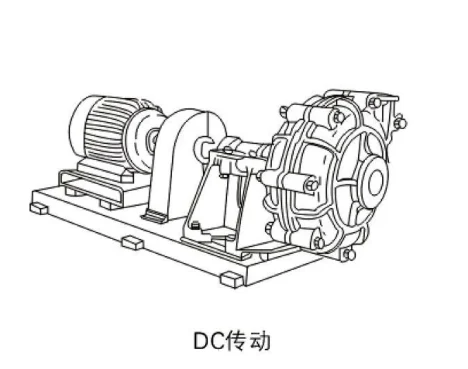

Direct-coupled set
Pump and motor on a common base. Confirm alignment and the required pump speed.

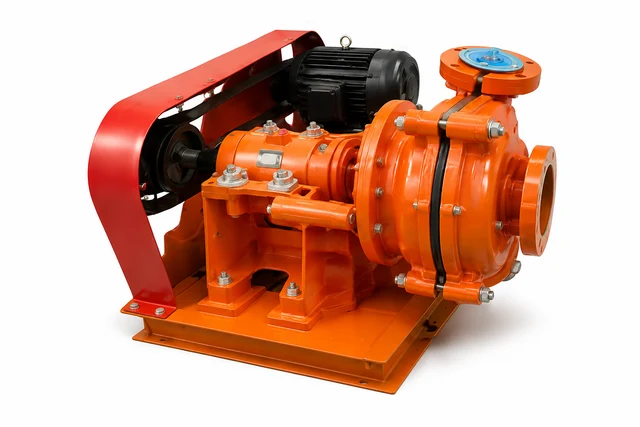

Belt-driven set
A belt transmission between pump and motor. Confirm ratio, tensioning and guarding.
- Foundation & alignment
- Suction piping
- Maintenance clearance
- Motor & power supply
Typical applications
Explore mineral, tailings and process duties, with selection details for each application.
Mineral processing
For mineral slurry transfer, cyclone feed and tailings circuits.
Tailings transfer
For tailings transport, pond transfer and slurry handling.

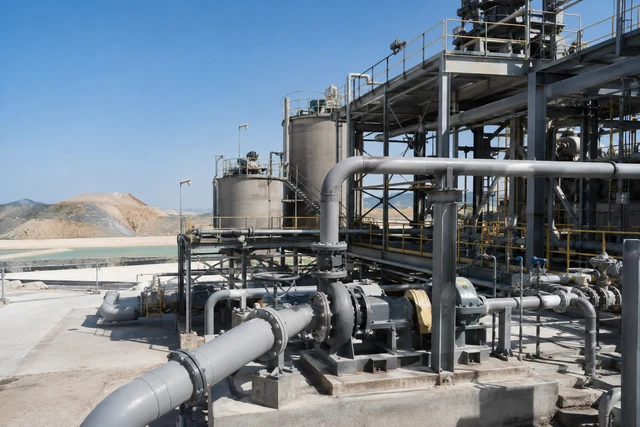

Process slurry
For industrial slurry transfer where particles and liquid chemistry affect the pump materials.

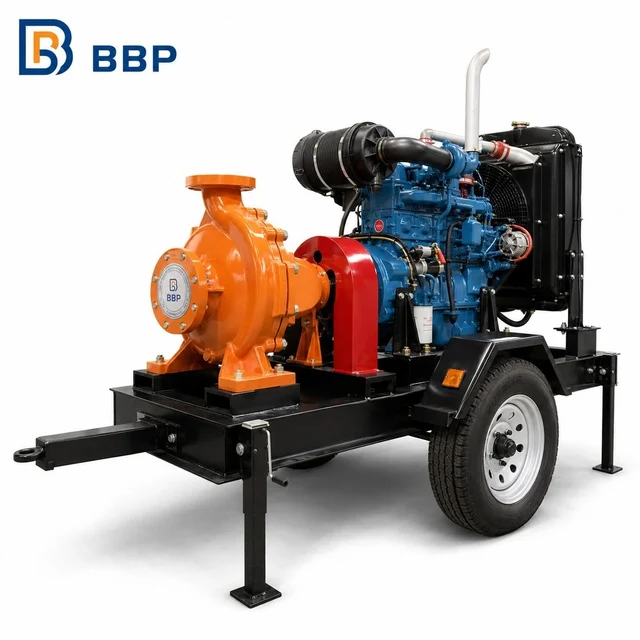

Pump-only, electric and diesel-driven options
Configure your slurry pump as a bare unit, with an electric motor or with a diesel engine. Define the driver, transmission and accessories around your site and duty.

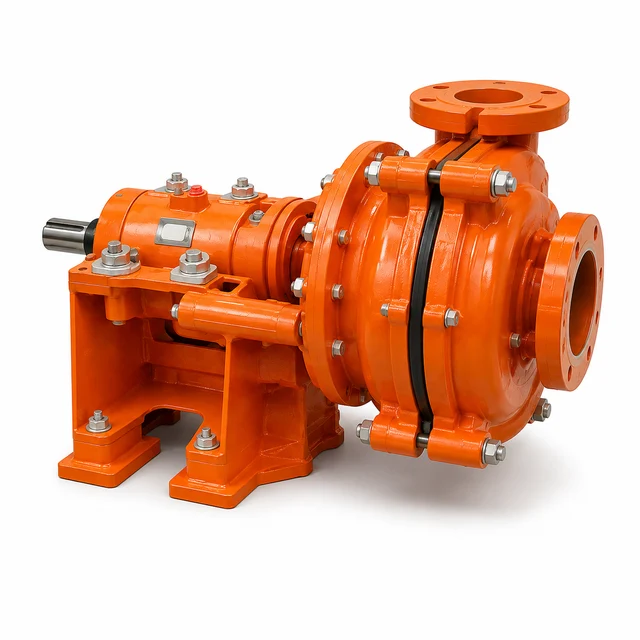

Bare pump
For integration with your existing driver and installation.
- Pump, wet-end parts, shaft & bearings
- Sealing arrangement for the duty
- Coupling & mounting interfaces
- Base and installation scope
Electric motor-driven set
Define the electrical supply and transmission for the required pump speed.
- Motor power, voltage & frequency
- Direct coupling or V-belt transmission
- Baseplate, guards & alignment
- Starter / VFD and controls, as required
Diesel engine-driven set
Specify the engine, transmission and supporting equipment for your site and operating hours.
- Engine power, speed & transmission
- Fuel, cooling & exhaust arrangement
- Starting battery & engine controls
- Baseframe & mounting arrangement
Check what your pump set includes
Drive & installation
Driver, transmission, baseframe, guards, mounting and maintenance access.
Controls & auxiliaries
Motor starter / VFD or engine controls, plus the required fuel, cooling and starting equipment.
Parts & documentation
Wear spares, seals, drawings, manuals and agreed inspection records.
Final driver, included equipment and layout are confirmed in the quotation.
From preparation to shipment

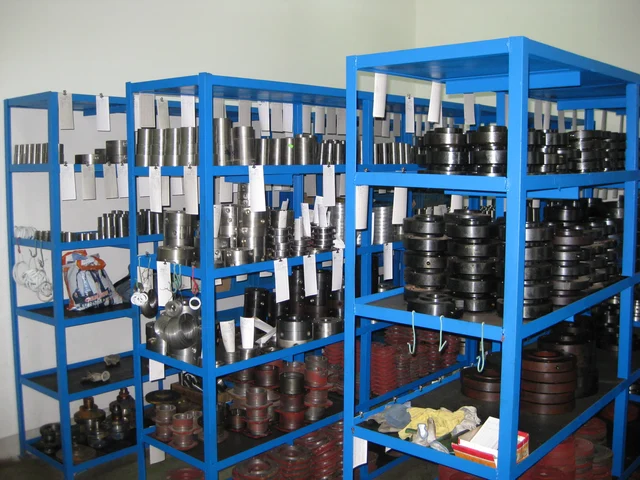

Components
Components prepared for assembly.

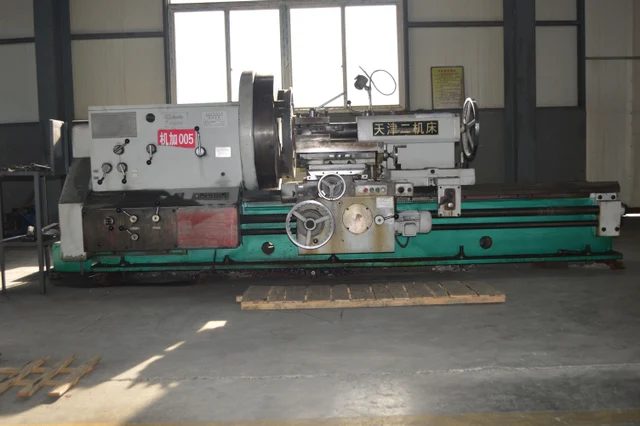

Machining
Machined interfaces and parts preparation.

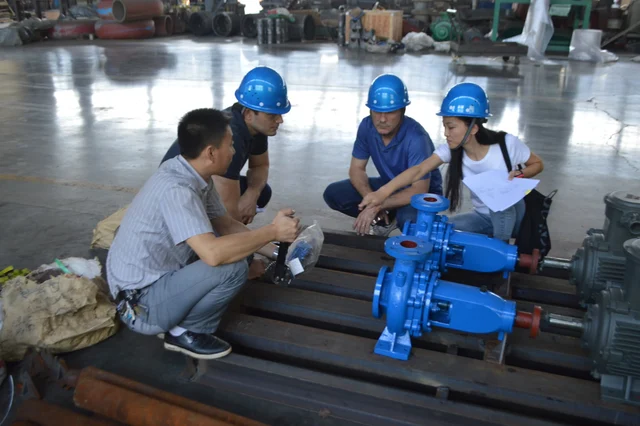

Inspection
Component and assembly inspection.

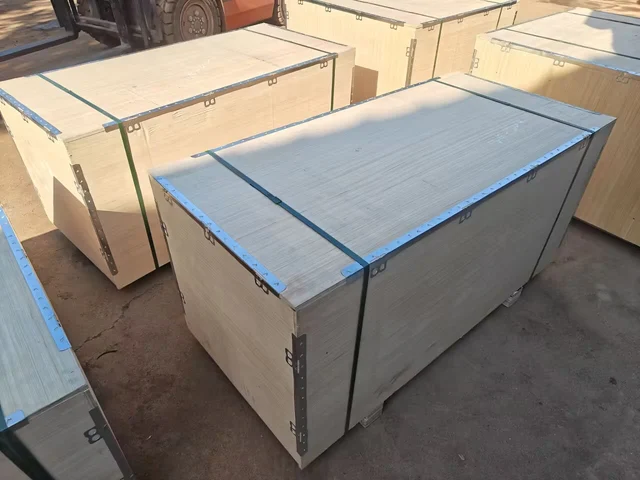

Packing
Protective packing for handling and delivery.
Technical documents
Installation & Maintenance

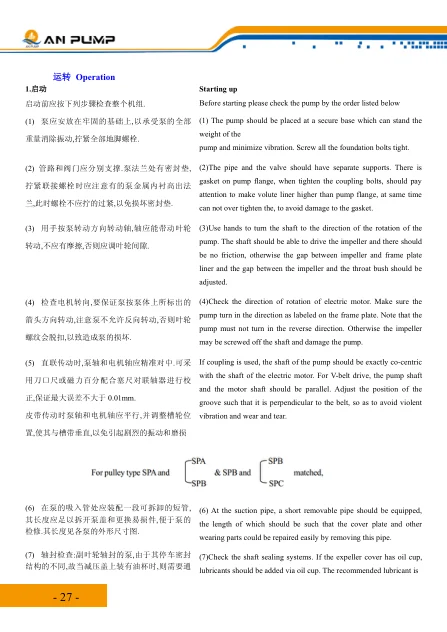

Operation and maintenance sections in the AM catalogue.
Selection Data Checklist
Collect flow, head, slurry properties and installation details.
Horizontal slurry pump questions
How is the right model selected?
Start with flow, total head, slurry properties and installation conditions. Confirm the applicable curve and wet-end materials before selecting a model.
Metal or rubber-lined wet end?
The AM catalogue describes metal and rubber-lined configurations. Confirm abrasion, particle size, liquid chemistry and temperature for the proposed material. The model-specific material schedule takes precedence.
Which drive arrangement should I use?
Direct coupling and belt drive are possible arrangements. Confirm the pump speed, motor speed, transmission, power supply, guarding and maintenance clearance against the proposed pump set.
What is included in the quotation?
Choose a bare pump, an electric motor-driven set or a diesel engine-driven set. Define the driver, transmission, baseframe, guards, sealing arrangement, controls and auxiliaries, wear spares and technical documents. Final supply scope is agreed in the quotation.
Tell us about your slurry duty
Tell us what slurry you handle, the required flow and head, and the installation or drive you need.
- Application focusedDescribe the slurry and required flow
