SLURRY HANDLING
Heavy-Duty Dredging Pump
Dredging equipment selected around the whole transfer system.
Sand, gravel and abrasive mixtures in dredging and material transfer.
- Installation
- Horizontal, dry-installed
- Wet end
- Wear-material schedule to be agreed for the dredged mixture and selected pump.
- Drive
- Drive and speed matched to the pump
- Selection
- Duty, slurry & applicable curve
Build the selection around your duty
Mixture and solids
Sand/gravel grading, maximum particle, liquid and solids density, and concentration range.
Related resources: Desilting and sediment transfer applications
Dredging system
Suction geometry, dredging depth, discharge elevation, pipeline length and diameter.
Equipment package
Operating speed, driver, base, transmission, sealing utilities, spares and required drawings.
The industrial brochure supplies a family overview, not a model-specific performance table. Its broad flow and head envelopes are not combined into a duty point.
Need a model-specific curve?
Provide the actual slurry and operating point so the proposed model, speed and material can be reviewed together.
Heavy-Duty Dredging Pump construction and operation
The heavy-duty dredging direction is presented in the supplied industrial brochure for sand, gravel and abrasive-mixture transfer. A dredging duty joins the pump to a changing suction source and a discharge pipeline, so the whole transport system needs review.
Describe the mixture flow, solids grading, concentration, dredging depth, suction layout and discharge distance. The brochure gives a broad family overview rather than independently verified model curves. A proposed pump needs an applicable curve, maximum passage, operating speed, pressure limit and arrangement drawing before its driver and installation can be finalized.
- ✓System-led dredging reviewInclude suction lift, inlet geometry, pipeline profile and discharge conditions.
- ✓Coarse-solids and wear assessmentSupply the grading and abrasive characteristics of the material being moved.
- ✓Defined package interfacesAgree pump, driver, mounting, transmission, seals and auxiliary services as one scope.
Components, materials and seals
Impeller
Review impeller construction and material against the solids, speed and hydraulic duty. Use the selected model parts schedule.
Casing & wear parts
Wear-material schedule to be agreed for the dredged mixture and selected pump.
Shaft sealing
Select the applicable seal around inlet pressure, liquid chemistry and utility availability. Seal options require the selected assembly.
Bearing assembly
Coordinate shaft support, alignment, lubrication and transmission loads. Keep access for inspection and maintenance.
Materials, sealing & duty requirements
| Review item | Required information |
|---|---|
| Wetted components | Wear-material schedule to be agreed for the dredged mixture and selected pump. |
| Sealing / interfaces | Series-specific sealing to be confirmed |
| Solids information | Concentration basis, particle distribution, maximum size, hardness and shape |
| Liquid conditions | Complete chemistry, liquid and solids densities, operating temperature |
| Installation information | Suction level and pressure, pipework, drive and maintenance access |
Check the complete operating point
- ✓Normal and maximum flow / head
- ✓Density and concentration range
- ✓Particles, chemistry and temperature
- ✓Site arrangement and operating cycle

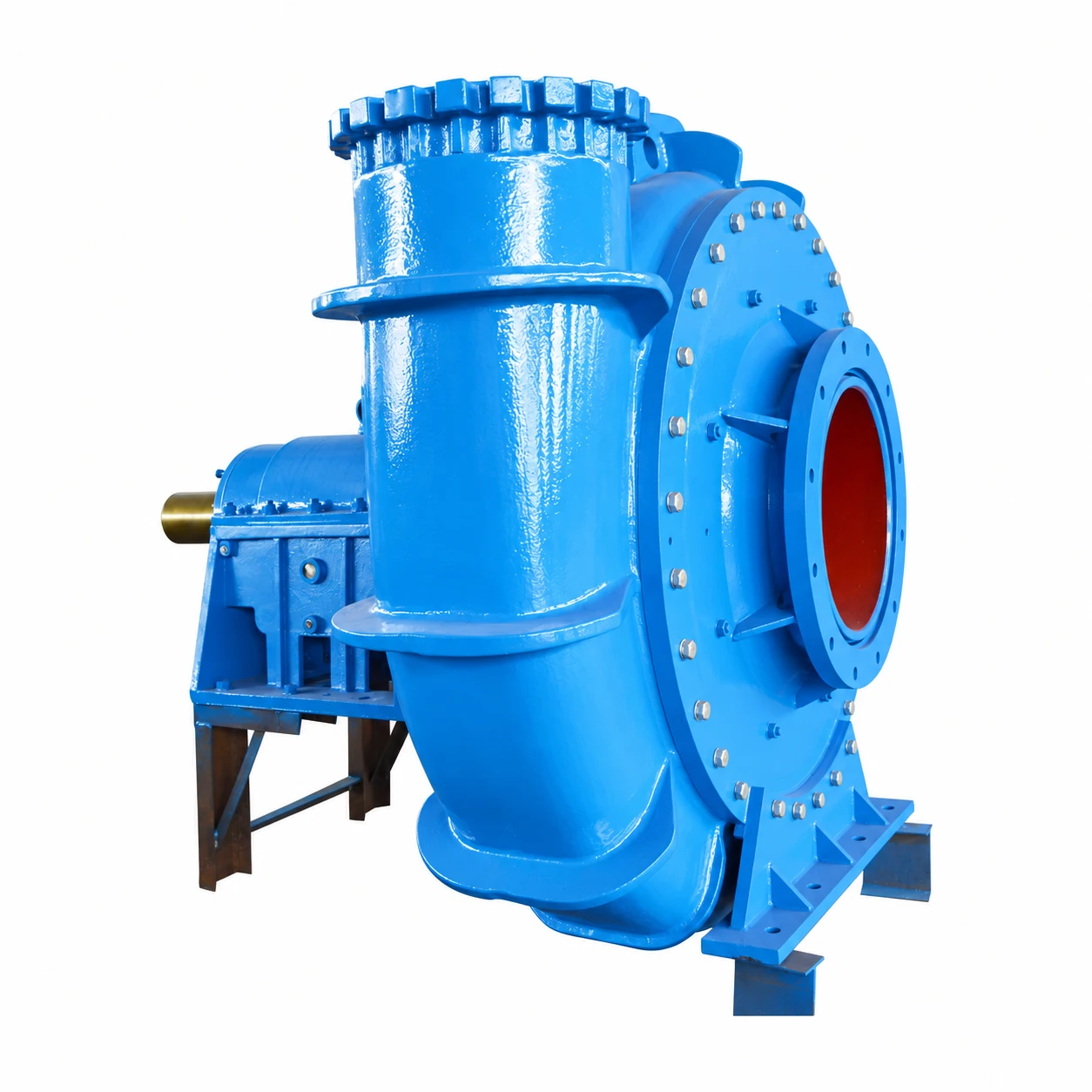

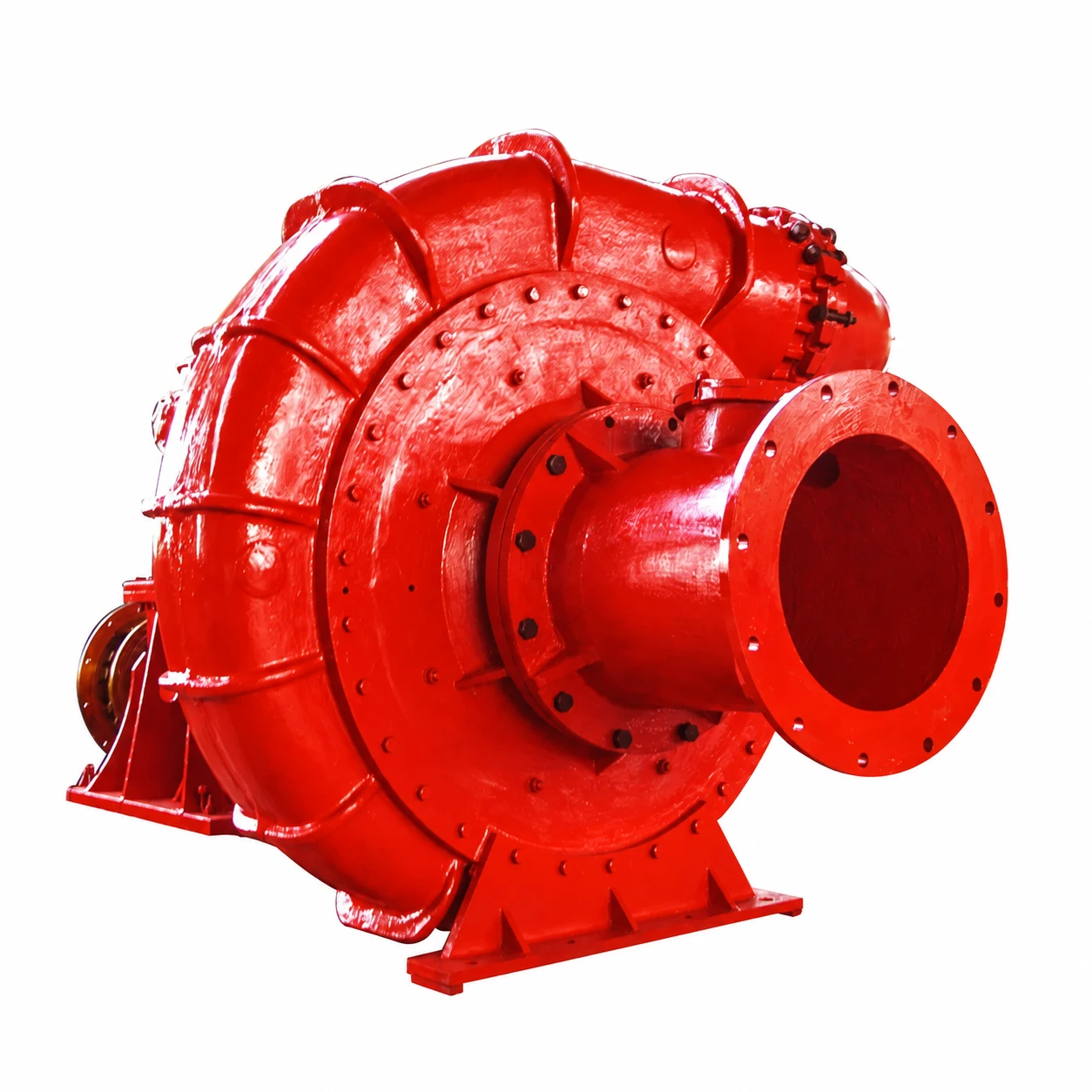

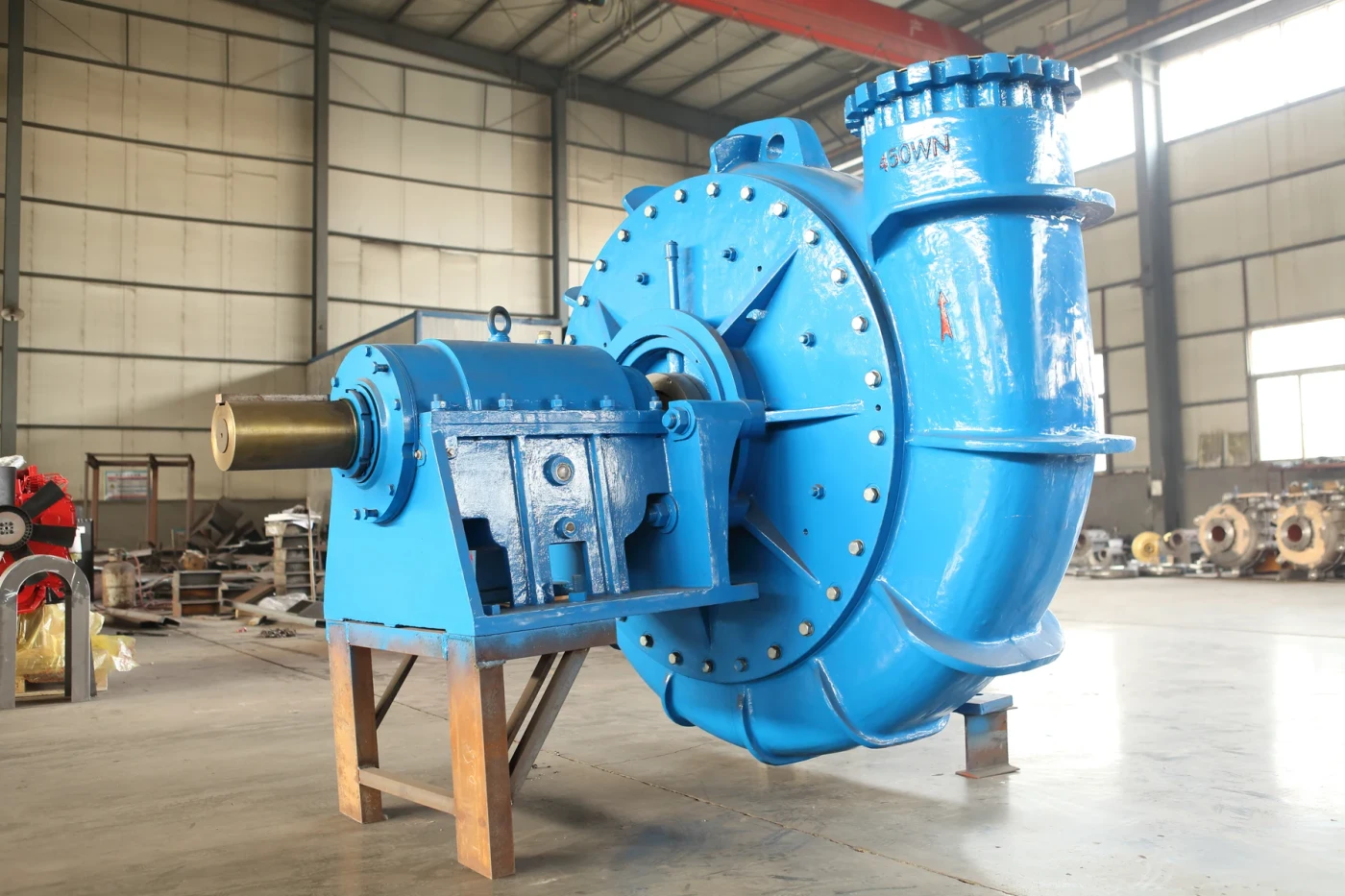

AI-generated family illustrations. The selected configuration follows the agreed model and drawing.
Installation & drive arrangement
Direct-coupled arrangement
Confirm the selected speed and motor arrangement, common-base alignment and removal clearances. The drawing must match the proposed set.
Transmission & speed review
Where a belt arrangement is proposed, review ratio, absorbed power, tensioning, guarding and foundation loads for the selected equipment.
- ✓Foundation and alignment
- ✓Suction pipework
- ✓Seal utilities
- ✓Maintenance clearance
Typical applications
Application descriptions are selection contexts. Suitability depends on the selected equipment and actual process conditions.
Dredging transfer
Define the changing suction conditions and the discharge pipeline route through the project.
Sand and gravel movement
Use the complete grading and density range to review passage, wear material and absorbed power.
Sediment handling
Include debris screening, sediment condition, operating cycle and the extraction arrangement.
Choose the supply scope
Select a scope below to carry it into the enquiry. The final equipment and documents are defined in the quotation.
Pump assembly
Pump, wet-end material, seal and shaft support for the selected duty.
- ✓Hydraulic assembly
- ✓Materials and sealing
- ✓Existing-drive interfaces
Electric pump set
Pump and matched motor with the agreed transmission, mounting and guarding.
- ✓Motor and operating speed
- ✓Base and transmission
- ✓Guarding and alignment
Configured equipment package
Agree the driver and complete equipment interfaces around the installation.
- ✓Driver and auxiliary scope
- ✓Wear spares and tools
- ✓Drawings and documentation
Define what arrives with the equipment
Equipment & interfaces
Selected pump, materials, seal, drive, connections, mounting and any required auxiliary services.
Inspection & documentation
Agree drawing revision, inspection requirements, applicable acceptance criteria and the documents required with delivery.
Packing & service spares
Specify preservation, packing, identification and an initial spare-parts list appropriate to the maintenance plan.
From preparation to shipment
Components & material review
Identify component drawings and materials for the agreed pump or parts scope.
Machining & interfaces
Check the critical faces, bores, fits and connections against the applicable drawing.
Inspection planning
Agree inspection points, acceptance criteria and any requested records before supply.
Packing & handover
Confirm identification, preservation, packing and the documents required for handover.
Technical documents
Original source catalogue
Original series introduction, drawings and available technical tables.
Slurry family brochure
Product arrangements and original family drawings. Confirm the applicable series and model.
Selected curve & arrangement
Request the applicable curve, materials, dimensions and installation instructions.
Pump questions
What is needed for a dredging selection?
How is the pump selected?
Are the images dimensional drawings?
What is included in the quotation?
What if there is no numerical table on this page?
How do I use this enquiry form?
Tell us about your slurry duty
Share the liquid, operating point and site arrangement for a useful selection discussion.
- ✓Operating pointFlow, head and operating range.
- ✓SlurryDensity, concentration and particles.
- ✓InstallationLiquid levels, drive and utilities.
