AZ40-1-A17
Outlet 40 mm
- Flow m³/h
- 9–23
- Head m
- 39.3–44.6
- Speed rpm
- 2900
SLURRY HANDLING

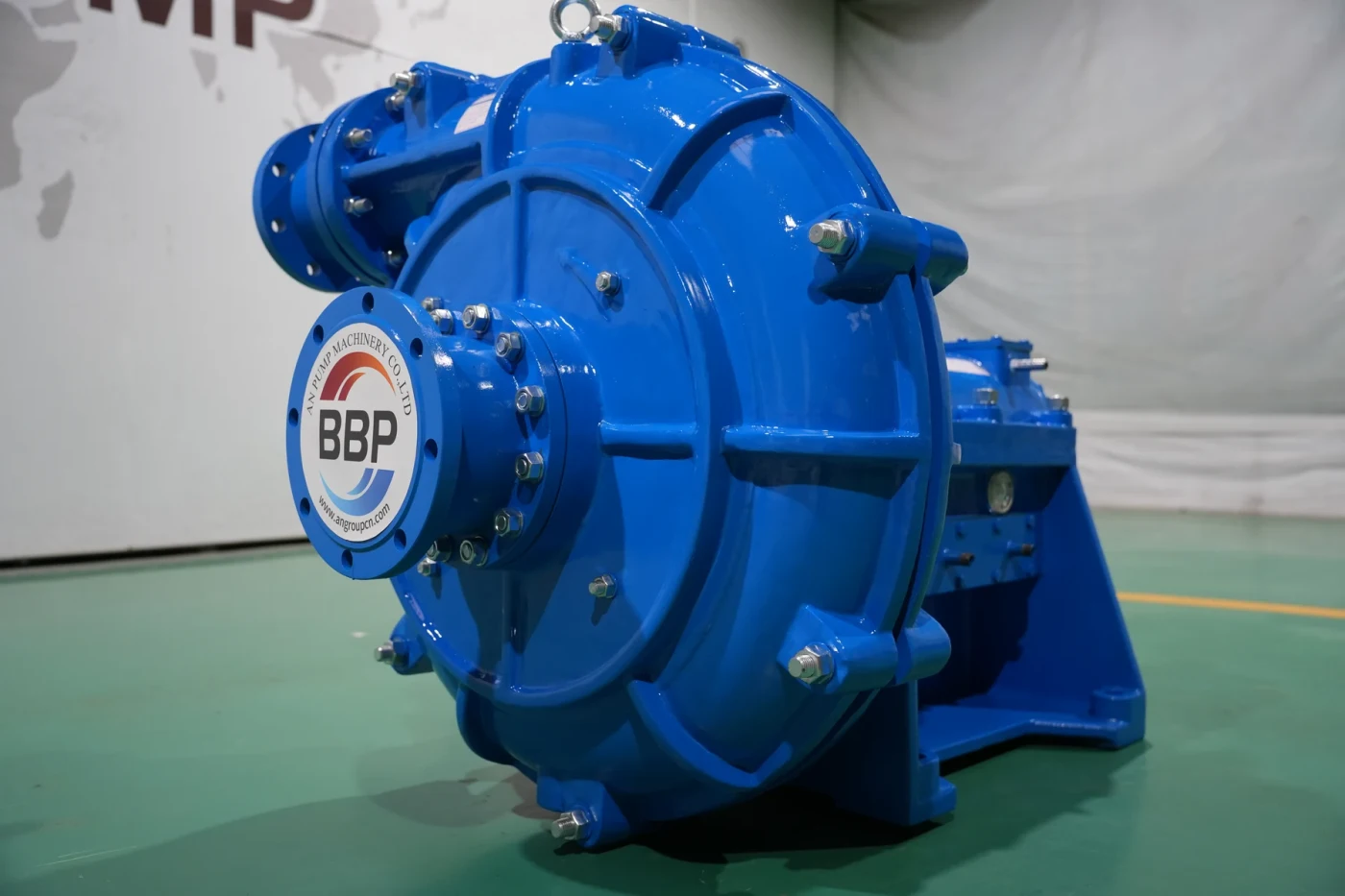

Double-Casing Horizontal Slurry Pump
For ash, coal and ore slurry circuits.
A horizontal slurry pump for ash, coal slurry, ore slurry and heavy-media handling.
Related resources: Mining slurry and tailings transfer
- Installation
- Horizontal, dry-installed
- Wet end
- Metal wet-end options for abrasion, corrosion or a combined duty, by selected material schedule.
- Drive
- Drive matched to pump speed
- Selection
- Duty, slurry & applicable curve
Compare catalogue operating records
Catalogue operating records
Range screening only. Flow/head limits are not interchangeable operating points. Open the printed table and request the applicable curve.
| Catalogue model | Outlet mm | Flow m³/h | Head m | Speed rpm | Source / selection |
|---|---|---|---|---|---|
| AZ40-1-A17 | 40 | 9–23 | 39.3–44.6 | 2900 | PDF p. 8 ↗ |
| AZ40-1-A17 | 40 | 4–11 | 9.1–10.3 | 1400 | PDF p. 8 ↗ |
| AZ50-1-A33 | 50 | 26–54 | 34.5–42.5 | 1480 | PDF p. 8 ↗ |
| AZ50-1-A33 | 50 | 17–35 | 14.5–17.9 | 960 | PDF p. 8 ↗ |
| AZ50-1-A46 | 50 | 48–94 | 79.9–85.8 | 1480 | PDF p. 8 ↗ |
| AZ50-1-A50 | 50 | 57–111 | 99.8–110.7 | 1480 | PDF p. 8 ↗ |
AZ40-1-A17
Outlet 40 mm
- Flow m³/h
- 4–11
- Head m
- 9.1–10.3
- Speed rpm
- 1400
AZ50-1-A33
Outlet 50 mm
- Flow m³/h
- 26–54
- Head m
- 34.5–42.5
- Speed rpm
- 1480
AZ50-1-A33
Outlet 50 mm
- Flow m³/h
- 17–35
- Head m
- 14.5–17.9
- Speed rpm
- 960
AZ50-1-A46
Outlet 50 mm
- Flow m³/h
- 48–94
- Head m
- 79.9–85.8
- Speed rpm
- 1480
AZ50-1-A50
Outlet 50 mm
- Flow m³/h
- 57–111
- Head m
- 99.8–110.7
- Speed rpm
- 1480
No catalogue range matches these inputs.
Try a different duty, clear the filters, or send the requirement for a curve review. An empty result does not establish that no pump can meet the duty.
Six example speed-specific records transcribed from physical PDF page 8. Flow and head columns summarize three printed points per record, not every combination between those limits. Further sizes remain in the complete source tables.
Need a model-specific curve?
Provide the actual slurry and operating point so the proposed model, speed and material can be reviewed together.
Double-Casing Horizontal Slurry Pump construction and operation
This horizontal slurry arrangement is described for ash, coal slurry, ore slurry and heavy-media handling. The manual shows a double casing split in the vertical direction and identifies discharge positioning at 45-degree intervals for the applicable construction.
Packing, an expeller with packing, and mechanical sealing are listed in the source. Choose between these around the inlet pressure, liquid chemistry, operating duty and seal-water conditions. The original numerical tables list separate operating points at stated speeds; changing speed or impeller configuration requires the corresponding curve and power review.
- ✓Double-casing arrangementReview the selected casing, liner and impeller material for the actual abrasion and corrosion combination.
- ✓Discharge orientation planningCoordinate the applicable outlet position with pipe supports and maintenance clearances.
- ✓Multiple shaft-seal directionsDefine process and utility conditions before agreeing the shaft seal.
Components, materials and seals
Impeller

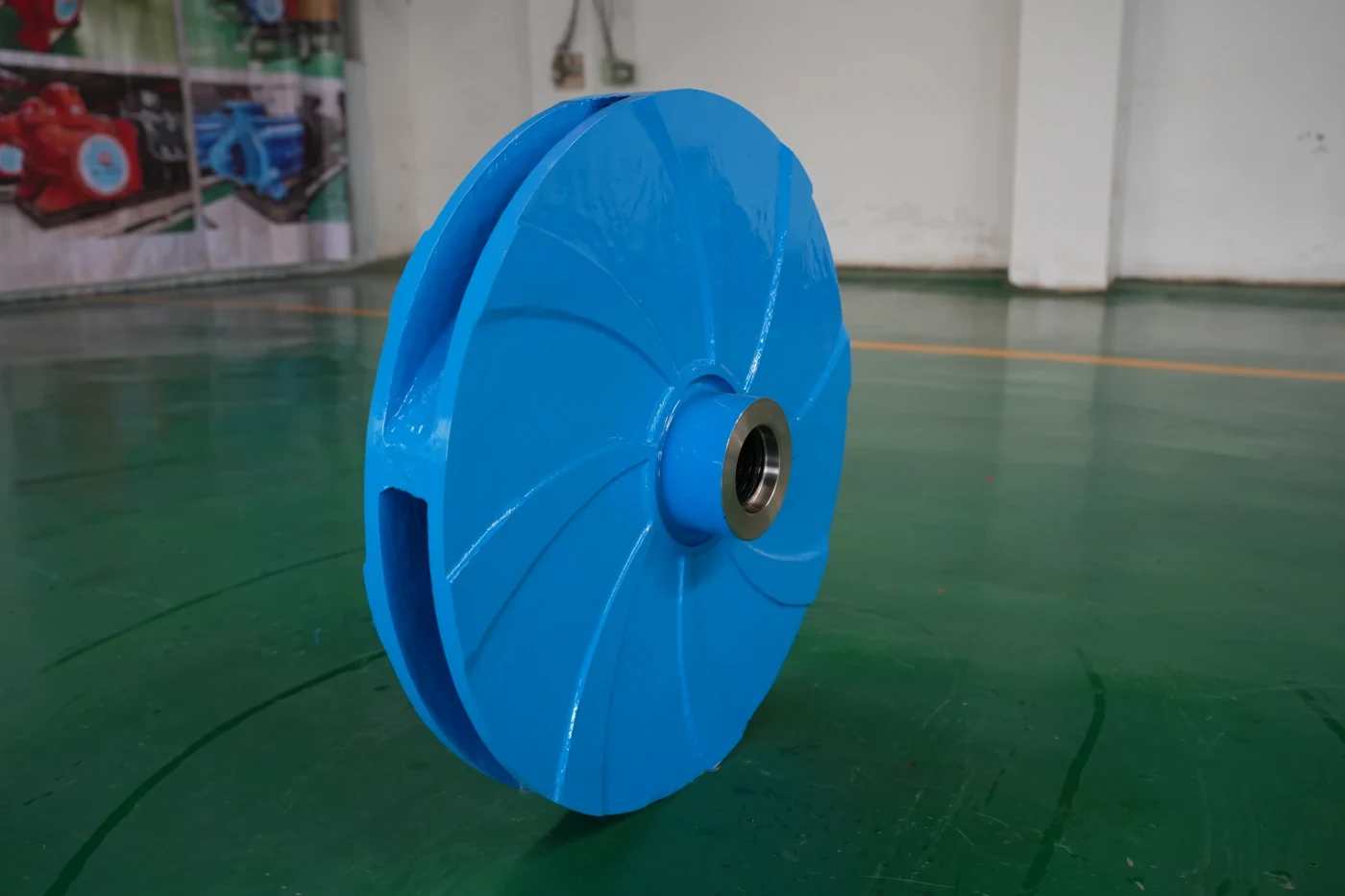

Review impeller construction and material against the solids, speed and hydraulic duty. Use the selected model parts schedule.
Casing & wear parts
Metal wet-end options for abrasion, corrosion or a combined duty, by selected material schedule.
Shaft sealing
Select the applicable seal around inlet pressure, liquid chemistry and utility availability. Seal options require the selected assembly.
Bearing assembly
Coordinate shaft support, alignment, lubrication and transmission loads. Keep access for inspection and maintenance.
Materials, sealing & duty requirements
| Review item | Required information |
|---|---|
| Wetted components | Metal wet-end options for abrasion, corrosion or a combined duty, by selected material schedule. |
| Sealing / interfaces | Packing, expeller with packing or mechanical |
| Solids information | Concentration basis, particle distribution, maximum size, hardness and shape |
| Liquid conditions | Complete chemistry, liquid and solids densities, operating temperature |
| Installation information | Suction level and pressure, pipework, drive and maintenance access |
Check the complete operating point
- ✓Normal and maximum flow / head
- ✓Density and concentration range
- ✓Particles, chemistry and temperature
- ✓Site arrangement and operating cycle
AI-generated family illustrations. The selected configuration follows the agreed model and drawing.

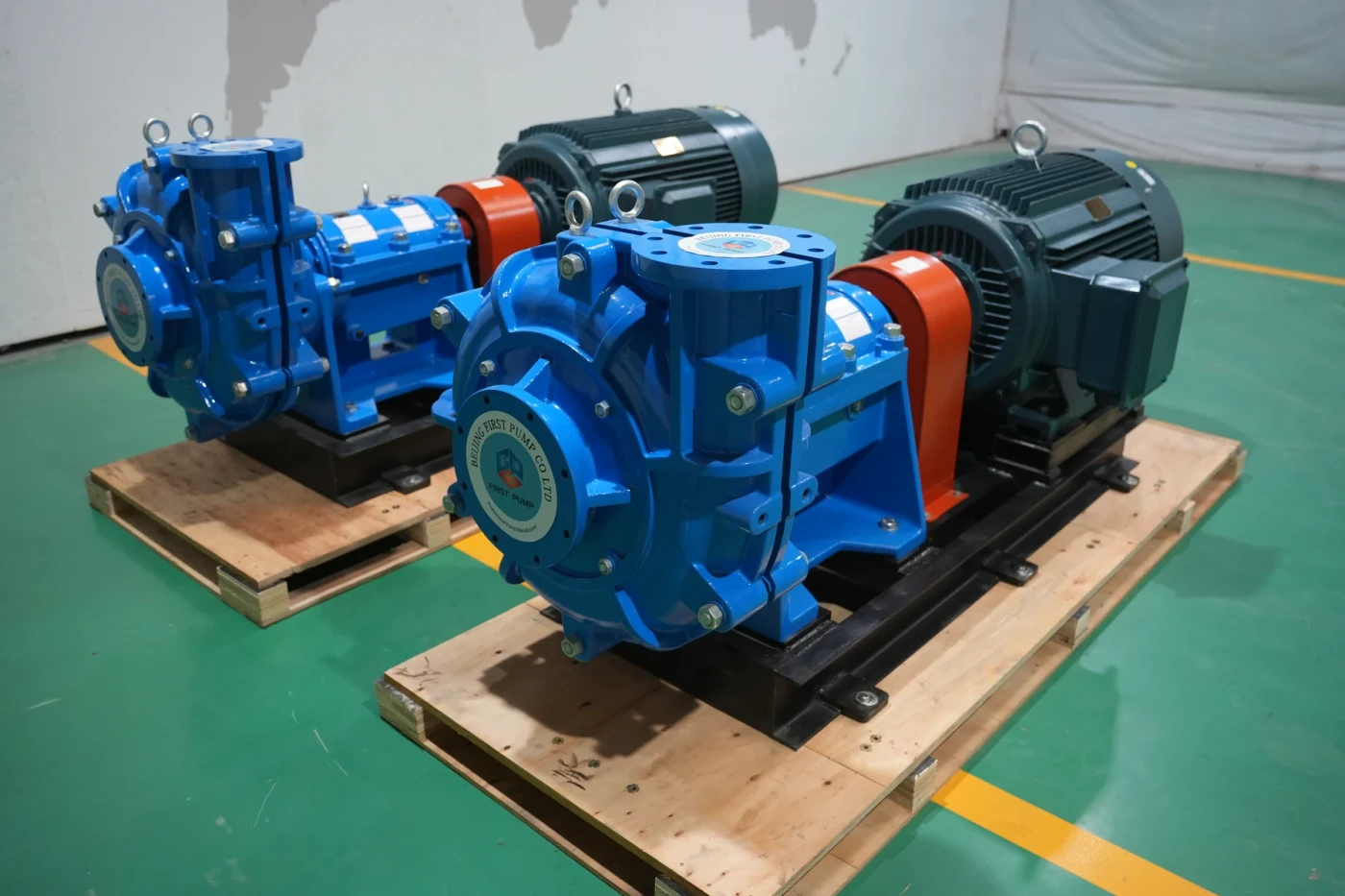

Installation & drive arrangement
Direct-coupled arrangement
Confirm the selected speed and motor arrangement, common-base alignment and removal clearances. The drawing must match the proposed set.
Transmission & speed review
Where a belt arrangement is proposed, review ratio, absorbed power, tensioning, guarding and foundation loads for the selected equipment.
- ✓Foundation and alignment
- ✓Suction pipework
- ✓Seal utilities
- ✓Maintenance clearance
Typical applications
Application descriptions are selection contexts. Suitability depends on the selected equipment and actual process conditions.
Ash handling
Specify ash concentration, temperature and water chemistry together with the discharge system.
Coal preparation
Include particle grading and heavy-media density where applicable to the process stream.
Ore slurry transfer
Review density changes and the complete system head before choosing the pump speed.
Choose the supply scope
Select a scope below to carry it into the enquiry. The final equipment and documents are defined in the quotation.
Pump assembly
Pump, wet-end material, seal and shaft support for the selected duty.
- ✓Hydraulic assembly
- ✓Materials and sealing
- ✓Existing-drive interfaces
Electric pump set
Pump and matched motor with the agreed transmission, mounting and guarding.
- ✓Motor and operating speed
- ✓Base and transmission
- ✓Guarding and alignment
Configured equipment package
Agree the driver and complete equipment interfaces around the installation.
- ✓Driver and auxiliary scope
- ✓Wear spares and tools
- ✓Drawings and documentation
Define what arrives with the equipment
Equipment & interfaces
Selected pump, materials, seal, drive, connections, mounting and any required auxiliary services.
Inspection & documentation
Agree drawing revision, inspection requirements, applicable acceptance criteria and the documents required with delivery.
Packing & service spares
Specify preservation, packing, identification and an initial spare-parts list appropriate to the maintenance plan.
From preparation to shipment
Components & material review
Identify component drawings and materials for the agreed pump or parts scope.
Machining & interfaces
Check the critical faces, bores, fits and connections against the applicable drawing.
Inspection planning
Agree inspection points, acceptance criteria and any requested records before supply.
Packing & handover
Confirm identification, preservation, packing and the documents required for handover.
Technical documents
Original source catalogue
Original series introduction, drawings and available technical tables.
Slurry family brochure
Product arrangements and original family drawings. Confirm the applicable series and model.
Selected curve & arrangement
Request the applicable curve, materials, dimensions and installation instructions.
Pump questions
Why does a model appear at more than one speed?
The catalogue lists separate operating records for different speeds. Select the correct speed and curve as one configuration; the highest flow from one record must not be combined with the highest head from another.
How is the pump selected?
Start with flow, total dynamic head, slurry density, solids concentration and size, temperature, chemistry and installation. Review these together on the applicable curve.
Are the images dimensional drawings?
Catalogue drawings show the source construction. Family exterior references and illustrative components are labelled. Use the selected model’s approved arrangement drawing for dimensions and installation.
What is included in the quotation?
The selected supply scope, materials, interfaces, inspection requirements, spares and documents must be agreed in the quotation. An illustration alone does not define the delivered equipment.
What if there is no numerical table on this page?
Send the operating requirement for a model-specific curve review. A product introduction or family envelope cannot replace a selected pump curve.
How do I use this enquiry form?
Choose any model, installation and supply options above, complete the required fields, and prepare a draft. Review it before copying, downloading or opening it in your email application.
Tell us about your slurry duty
Share the liquid, operating point and site arrangement for a useful selection discussion.
- ✓Operating pointFlow, head and operating range.
- ✓SlurryDensity, concentration and particles.
- ✓InstallationLiquid levels, drive and utilities.
