AZL80-33
Outlet 80 mm · Source motor 11 kW
- Flow m³/h
- 63–121
- Head m
- 11.8–16.4
- Speed rpm
- 970
SLURRY HANDLING
Vertical Slurry Pump
Vertical slurry handling with an above-liquid motor.
A vertical slurry pump for abrasive solids-handling duties where the vertical arrangement suits the installation.
Related resources: Mining slurry and tailings transfer
- Installation
- Vertical sump, motor above liquid
- Wet end
- Metal hydraulic components selected around slurry abrasion and liquid chemistry.
- Drive
- Motor above the liquid
- Selection
- Duty, slurry & applicable curve
Compare catalogue operating records
Catalogue operating records
Range screening only. Flow/head limits are not interchangeable operating points. Open the printed table and request the applicable curve.
| Catalogue model | Outlet mm | Flow m³/h | Head m | Speed rpm | Source / selection |
|---|---|---|---|---|---|
| AZL80-33 | 80 | 63–121 | 11.8–16.4 | 970 | PDF p. 21 ↗ |
| AZL100-34 | 100 | 157–293 | 24.4–36.8 | 1480 | PDF p. 21 ↗ |
| AZL100-34 | 100 | 103–192 | 10.5–15.8 | 970 | PDF p. 21 ↗ |
| AZL100-31 | 100 | 143–267 | 20.3–30.6 | 1480 | PDF p. 21 ↗ |
| AZL150-35 | 150 | 198–364 | 12.1–17.9 | 980 | PDF p. 21 ↗ |
| AZL150-32 | 150 | 181–332 | 10.1–15 | 980 | PDF p. 21 ↗ |
AZL100-34
Outlet 100 mm · Source motor 45 kW
- Flow m³/h
- 157–293
- Head m
- 24.4–36.8
- Speed rpm
- 1480
AZL100-34
Outlet 100 mm · Source motor 15 kW
- Flow m³/h
- 103–192
- Head m
- 10.5–15.8
- Speed rpm
- 970
AZL100-31
Outlet 100 mm · Source motor 37 kW
- Flow m³/h
- 143–267
- Head m
- 20.3–30.6
- Speed rpm
- 1480
AZL150-35
Outlet 150 mm · Source motor 37 kW
- Flow m³/h
- 198–364
- Head m
- 12.1–17.9
- Speed rpm
- 980
AZL150-32
Outlet 150 mm · Source motor 22 kW
- Flow m³/h
- 181–332
- Head m
- 10.1–15
- Speed rpm
- 980
No catalogue range matches these inputs.
Try a different duty, clear the filters, or send the requirement for a curve review. An empty result does not establish that no pump can meet the duty.
Six example operating records from the AZL-specific table on physical PDF page 21. Ranges summarize printed points at each stated speed. Other vertical sizes and speeds remain in the source tables on pages 20–21.
Need a model-specific curve?
Provide the actual slurry and operating point so the proposed model, speed and material can be reviewed together.
Vertical Slurry Pump construction and operation
The vertical slurry arrangement places the hydraulic end below the mounting level with the motor supported above it. The dedicated drawing identifies the volute casing, impeller, rear liner, supporting plates, bearing body, motor support and discharge pipe.
Immersion length, mounting geometry and the operating liquid levels are central to the layout. The shared horizontal/vertical manual includes separate vertical performance tables; horizontal pump ratings must not be substituted. Plan the removal path and overhead lifting space before fixing the mounting plate and discharge pipework.
- ✓Dedicated vertical structureThe column, support and discharge pipe are part of the selected arrangement.
- ✓Motor above the liquidCoordinate deck elevation, liquid-level variation and the motor support together.
- ✓Vertical-specific tablesCompare the vertical pump records at their stated speed and outlet diameter.

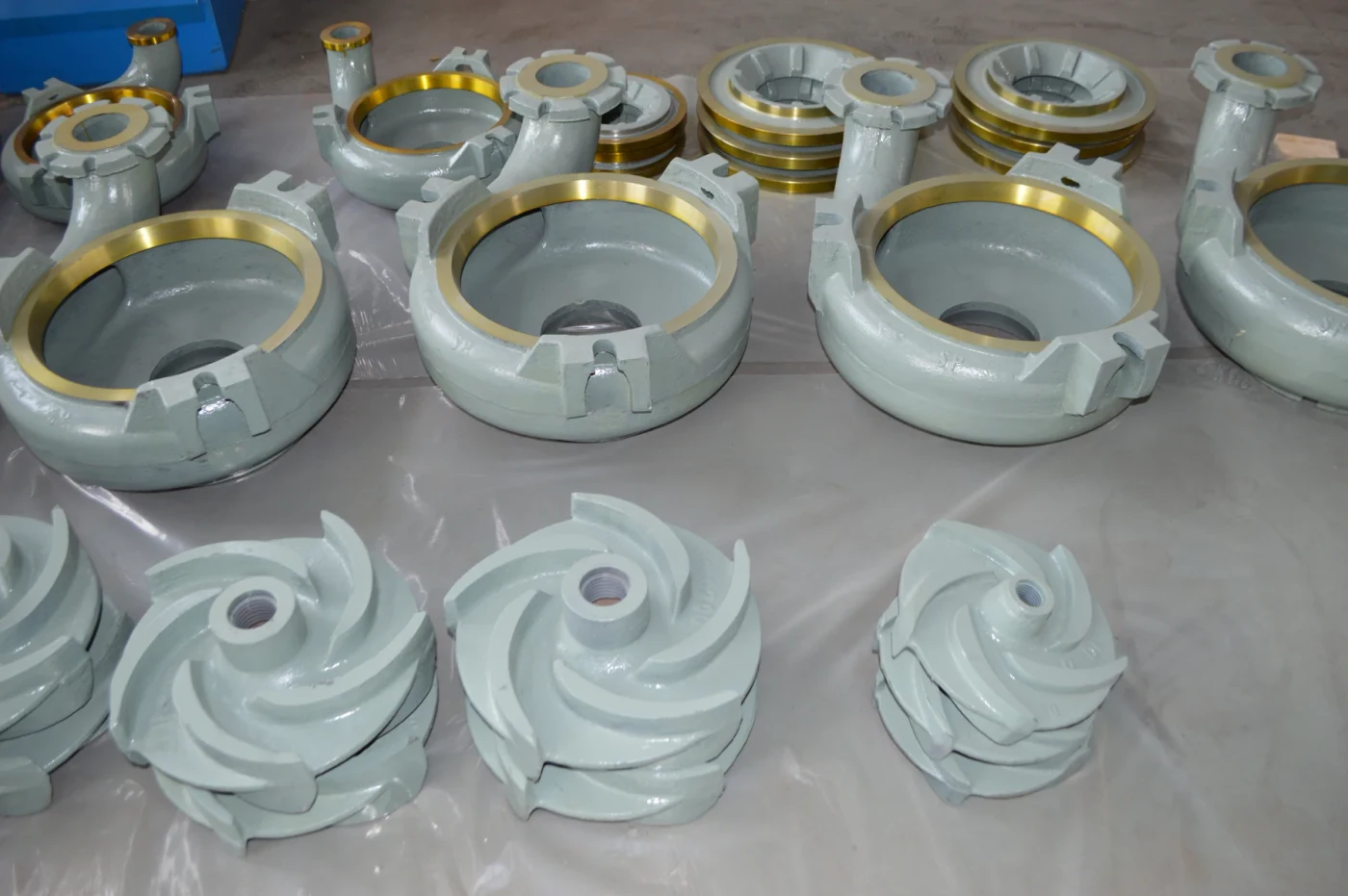

Components, materials and seals

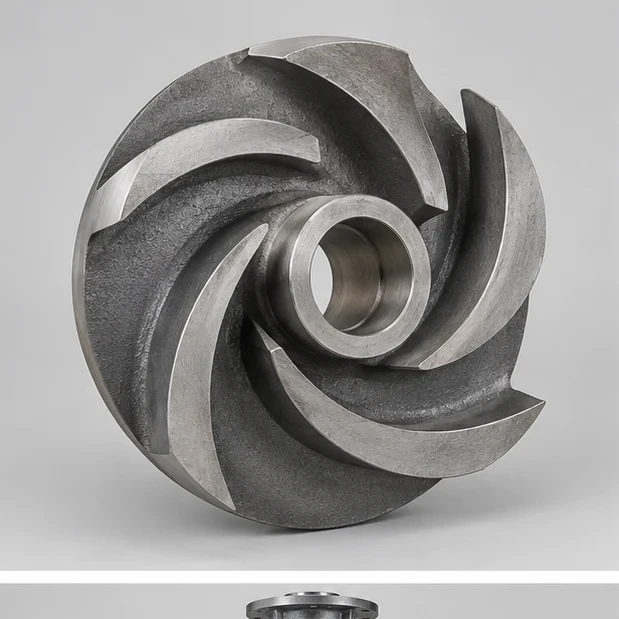

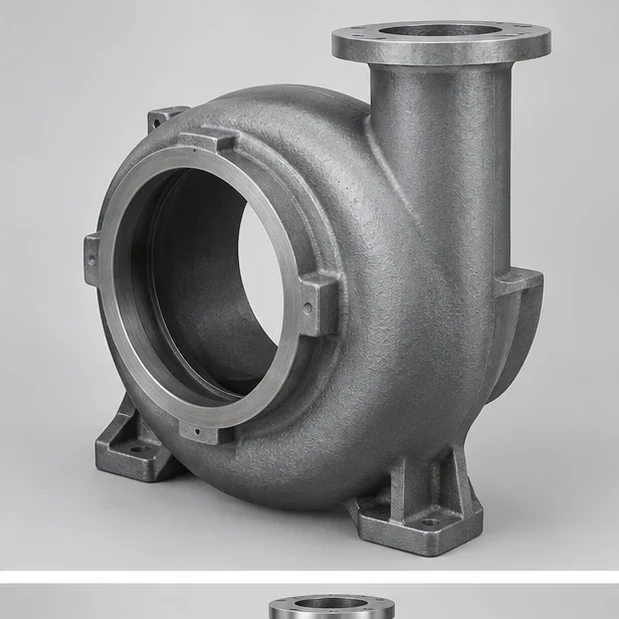

Impeller & casing
The hydraulic end operates below the mounting level. Match its material to abrasion and liquid chemistry.

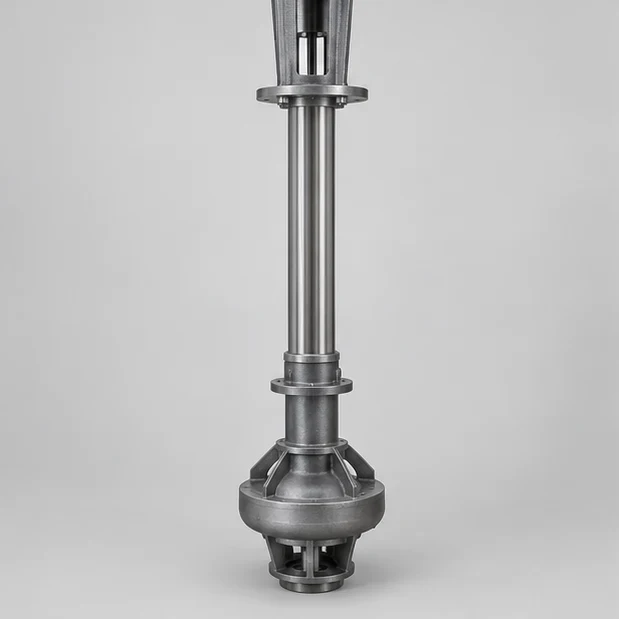

Shaft & column
Column and shaft length follow the sump geometry and operating liquid levels. Extension designs require their own review.
Bearing support
Keep the above-liquid drive and bearing support accessible for lubrication, inspection and removal.

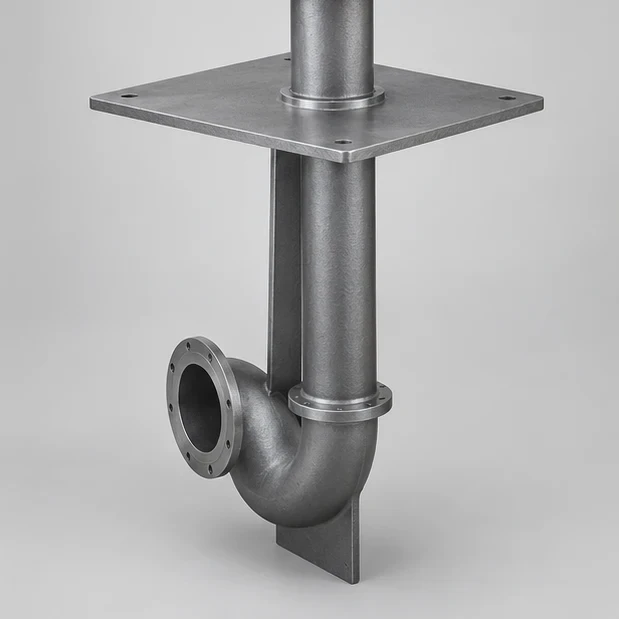

Discharge & installation
Support the discharge pipe independently and agree the outlet interface, lifting path and removal clearance.
Materials, sealing & duty requirements
| Review item | Required information |
|---|---|
| Wetted components | Metal hydraulic components selected around slurry abrasion and liquid chemistry. |
| Sealing / interfaces | Confirm the AZL arrangement |
| Solids information | Concentration basis, particle distribution, maximum size, hardness and shape |
| Liquid conditions | Complete chemistry, liquid and solids densities, operating temperature |
| Installation information | Sump dimensions, liquid levels, immersion and mounting plate |
Check the complete operating point
- ✓Normal and maximum flow / head
- ✓Density and concentration range
- ✓Particles, chemistry and temperature
- ✓Site arrangement and operating cycle

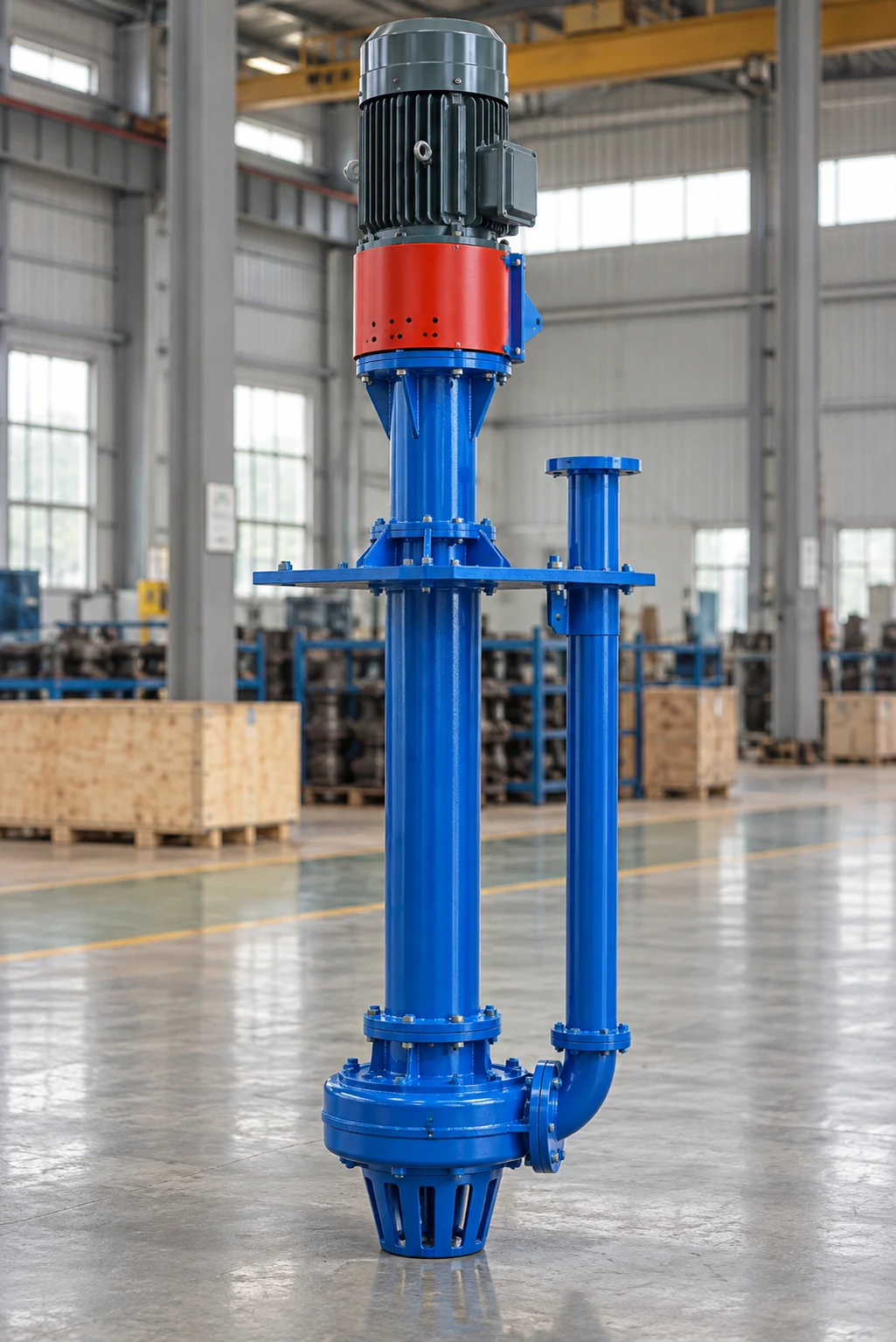

AI-generated family illustrations. The selected configuration follows the agreed model and drawing.
Installation & drive arrangement
Mounting plate & immersion
Coordinate the mounting level, shaft length, normal and minimum liquid levels, and pump removal path.
Above-liquid motor arrangement
Review the selected drive speed, alignment and access around the motor support. Extension-shaft flushing follows the documented design.
- ✓Mounting elevation
- ✓Liquid-level range
- ✓Removal clearance
- ✓Discharge support

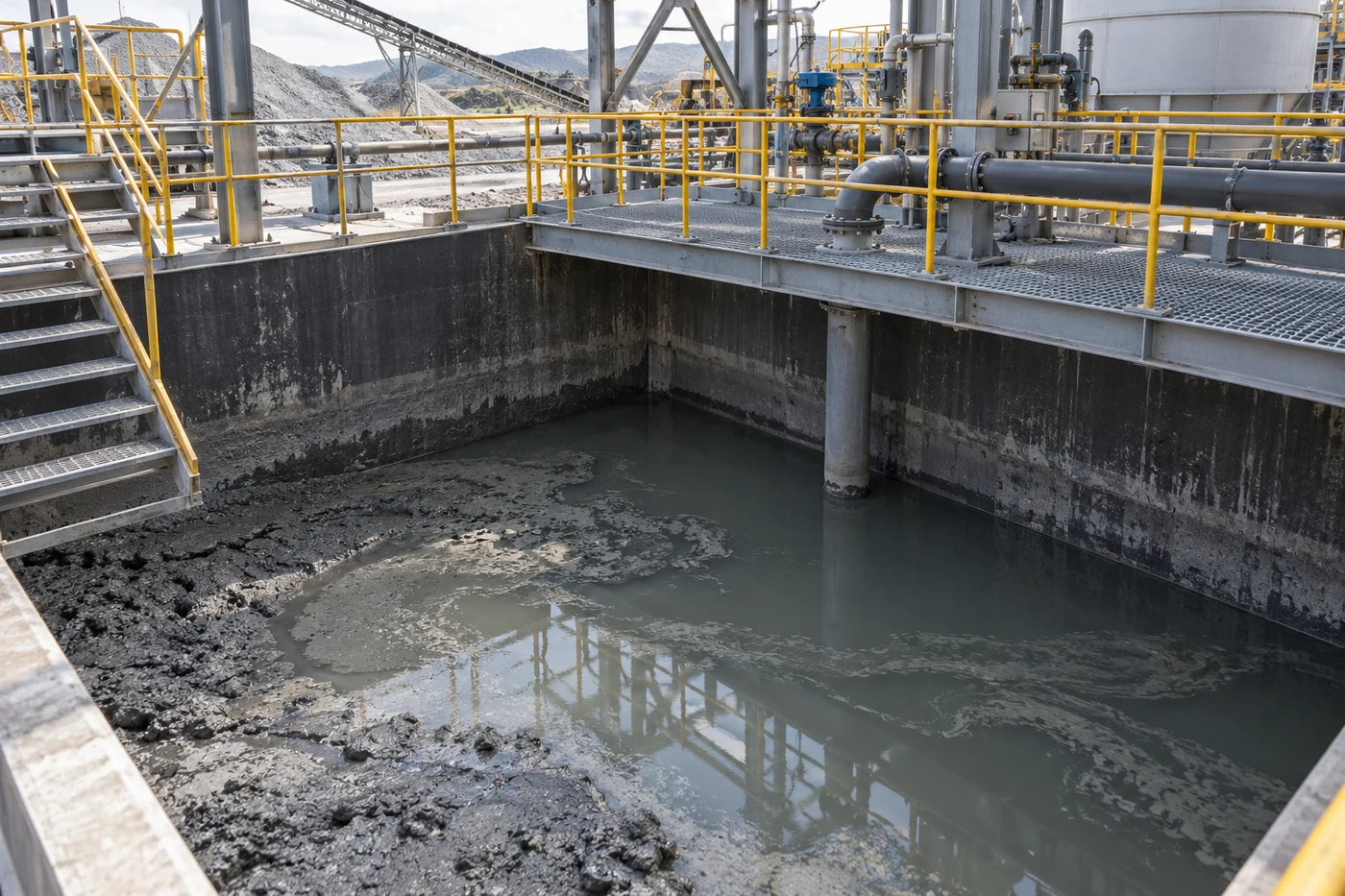

Typical applications
Application descriptions are selection contexts. Suitability depends on the selected equipment and actual process conditions.
Process sumps
Define the mounting level, lowest operating liquid level and required extraction flow.
Coal and mineral circuits
Provide the slurry composition and expected concentration changes during the process cycle.
Ash and industrial pits
Review temperature, settled solids and maintenance access around the sump.
