SLURRY HANDLING
Light-Duty Slurry Pump
For finer particles and lighter slurry duties.
A light-duty slurry pump for fine particles, lower-concentration slurry and compatible corrosive liquids.
Related resources: Mining slurry and tailings transfer
- Installation
- Horizontal, dry-installed
- Wet end
- Metal or elastomer configuration subject to the selected size, slurry and material schedule.
- Drive
- Drive matched to pump speed
- Selection
- Duty, slurry & applicable curve
Build the selection around your duty
Liquid and fine solids
Liquid chemistry, temperature, solids concentration and particle-size distribution.
Hydraulic sizing
Required flow and total head, suction conditions and normal operating range.
Impeller and assembly
Applicable impeller type, wet-end materials, sealing and model-specific installation drawing.
The supplied manual provides a light-duty introduction and construction drawing, but no separate AML numerical selection table.
Need a model-specific curve?
Provide the actual slurry and operating point so the proposed model, speed and material can be reviewed together.
Light-Duty Slurry Pump construction and operation
The light-duty slurry pump is described for finer particles, lower-concentration slurry and compatible corrosive liquids. Its selection emphasis differs from the heavy-duty direction: liquid chemistry, the particle distribution and the operating point must suit the lighter arrangement.
The manual includes a dedicated light-duty structure drawing showing the bearing assembly, packing box, pump body, cover, volute liner, throatbush and impeller. Impeller construction varies with size in that source, so the selected configuration needs its own drawing. A light-duty label is not permission to run outside the selected curve or material limits.
- ✓A distinct light-duty arrangementUse the dedicated construction drawing rather than treating this as a renamed heavy-duty pump.
- ✓Fine-particle duty assessmentDescribe the concentration range and particle distribution, including occasional oversized solids.
- ✓Chemistry and material reviewSpecify liquid constituents and temperature before choosing a metal or elastomer wet end.
Components, materials and seals
Impeller
Review impeller construction and material against the solids, speed and hydraulic duty. Use the selected model parts schedule.
Casing & wear parts
Metal or elastomer configuration subject to the selected size, slurry and material schedule.
Shaft sealing
Select the applicable seal around inlet pressure, liquid chemistry and utility availability. Seal options require the selected assembly.
Bearing assembly
Coordinate shaft support, alignment, lubrication and transmission loads. Keep access for inspection and maintenance.
Materials, sealing & duty requirements
| Review item | Required information |
|---|---|
| Wetted components | Metal or elastomer configuration subject to the selected size, slurry and material schedule. |
| Sealing / interfaces | Packing, expeller or mechanical, by configuration |
| Solids information | Concentration basis, particle distribution, maximum size, hardness and shape |
| Liquid conditions | Complete chemistry, liquid and solids densities, operating temperature |
| Installation information | Suction level and pressure, pipework, drive and maintenance access |
Check the complete operating point
- ✓Normal and maximum flow / head
- ✓Density and concentration range
- ✓Particles, chemistry and temperature
- ✓Site arrangement and operating cycle

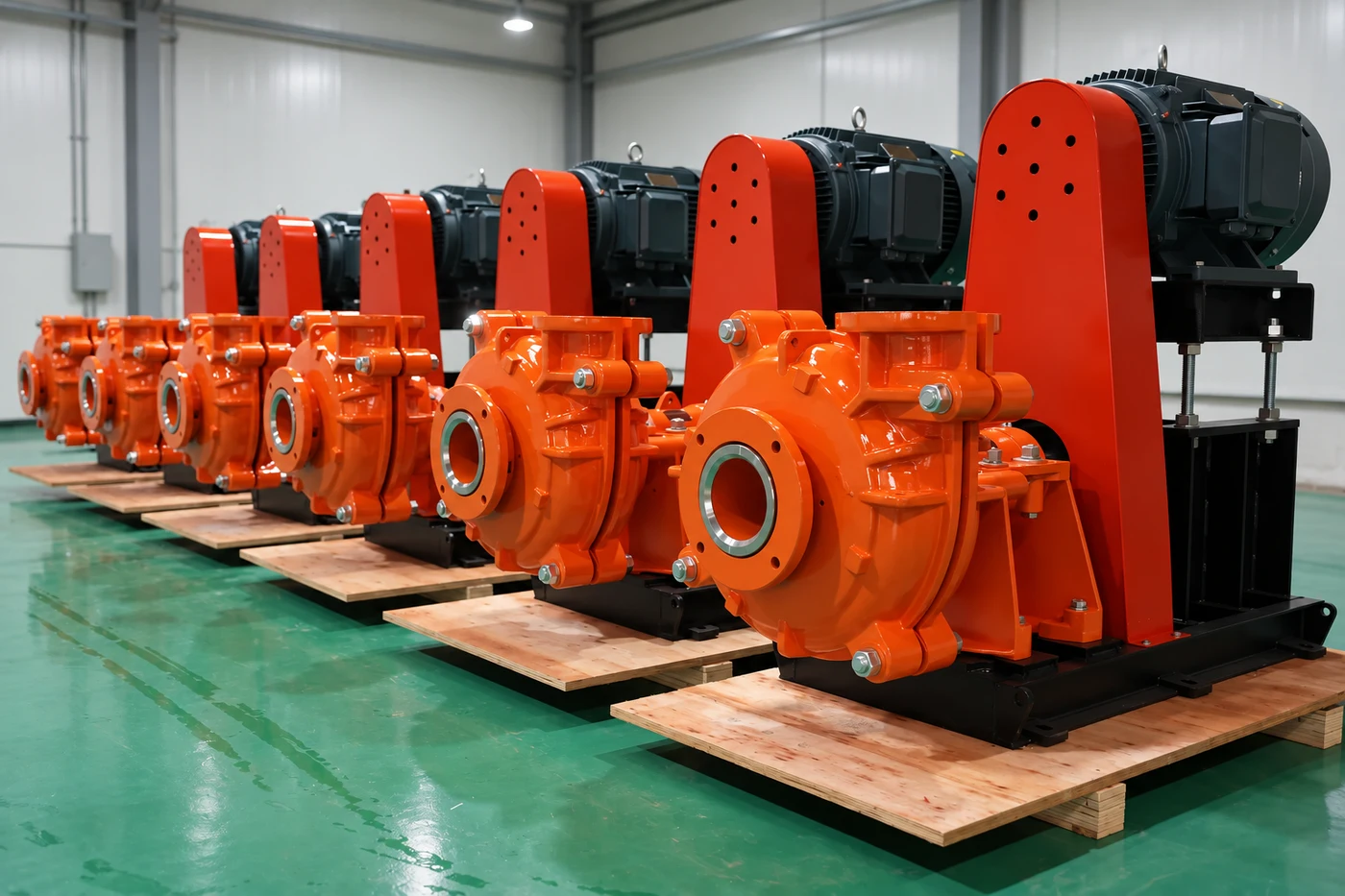

AI-generated family illustrations. The selected configuration follows the agreed model and drawing.
Installation & drive arrangement
Direct-coupled arrangement
Confirm the selected speed and motor arrangement, common-base alignment and removal clearances. The drawing must match the proposed set.
Transmission & speed review
Where a belt arrangement is proposed, review ratio, absorbed power, tensioning, guarding and foundation loads for the selected equipment.
- ✓Foundation and alignment
- ✓Suction pipework
- ✓Seal utilities
- ✓Maintenance clearance
Typical applications
Application descriptions are selection contexts. Suitability depends on the selected equipment and actual process conditions.
Fine mineral slurries
Review process water, reagents and fine solids as one mixture when selecting the wet end.
Dilute slurry transfer
Include both normal concentration and the temporary process conditions expected at start-up or shutdown.
Compatible process liquids
Corrosive-liquid suitability depends on the actual material and chemistry; provide the full liquid specification.
Choose the supply scope
Select a scope below to carry it into the enquiry. The final equipment and documents are defined in the quotation.
Pump assembly
Pump, wet-end material, seal and shaft support for the selected duty.
- ✓Hydraulic assembly
- ✓Materials and sealing
- ✓Existing-drive interfaces
Electric pump set
Pump and matched motor with the agreed transmission, mounting and guarding.
- ✓Motor and operating speed
- ✓Base and transmission
- ✓Guarding and alignment
Configured equipment package
Agree the driver and complete equipment interfaces around the installation.
- ✓Driver and auxiliary scope
- ✓Wear spares and tools
- ✓Drawings and documentation
Define what arrives with the equipment
Equipment & interfaces
Selected pump, materials, seal, drive, connections, mounting and any required auxiliary services.
Inspection & documentation
Agree drawing revision, inspection requirements, applicable acceptance criteria and the documents required with delivery.
Packing & service spares
Specify preservation, packing, identification and an initial spare-parts list appropriate to the maintenance plan.
From preparation to shipment
Components & material review
Identify component drawings and materials for the agreed pump or parts scope.
Machining & interfaces
Check the critical faces, bores, fits and connections against the applicable drawing.
Inspection planning
Agree inspection points, acceptance criteria and any requested records before supply.
Packing & handover
Confirm identification, preservation, packing and the documents required for handover.
Technical documents
Original source catalogue
Original series introduction, drawings and available technical tables.
Slurry family brochure
Product arrangements and original family drawings. Confirm the applicable series and model.
Selected curve & arrangement
Request the applicable curve, materials, dimensions and installation instructions.
Pump questions
Is the impeller the same for every size?
How is the pump selected?
Are the images dimensional drawings?
What is included in the quotation?
What if there is no numerical table on this page?
How do I use this enquiry form?
Tell us about your slurry duty
Share the liquid, operating point and site arrangement for a useful selection discussion.
- ✓Operating pointFlow, head and operating range.
- ✓SlurryDensity, concentration and particles.
- ✓InstallationLiquid levels, drive and utilities.
