Rubber-Lined Vertical Sump Pump

Rubber-protected sump construction for a compatible slurry.

A rubber-lined vertical sump pump for slurry where the elastomer and installation suit the liquid and particles.

Installation
Vertical sump, motor above liquid
Wet end
Rubber wet end and elastomer-protected components as identified in the selected assembly.
Drive
Motor above the liquid
Selection
Duty, slurry & applicable curve

Build the selection around your duty

Elastomer compatibility

Liquid composition, pH, operating temperature and any oils, solvents or process reagents.

Particles and duty

Maximum size, particle shape, concentration, required flow and head.

Sump arrangement

Immersion length, mounting plate, liquid levels, discharge interface and extension requirements.

The source lists BPR model identities on PDF page 3. Numerical BP operating points are not BPR ratings; request a BPR-specific performance curve.

Need a model-specific curve?

Provide the actual slurry and operating point so the proposed model, speed and material can be reviewed together.

Rubber-Lined Vertical Sump Pump construction and operation

The rubber sump direction is shown separately from the metal version in the supplied catalogue. The component schedule identifies elastomer protection on the shaft, mounting-plate underside, column and discharge pipe, together with rubber wet-end components in the illustrated arrangement.

Choose this construction by reviewing the complete liquid and particle properties. The rubber specification must suit chemistry and temperature as well as abrasion. The catalogue lists rubber-series model names, but its detailed BP operating tables are metal-pump data and are not transferred to the rubber version. Request the applicable rubber-pump curve and material schedule.

  • Rubber-specific component scheduleReview the protected shaft, column, discharge pipe and wet-end parts as a complete assembly.
  • Compound compatibilityProvide pH, constituents, temperature and particle shape when selecting the elastomer.
  • Independent hydraulic reviewUse a rubber-series curve rather than assuming metal-series performance is interchangeable.

Components, materials and seals

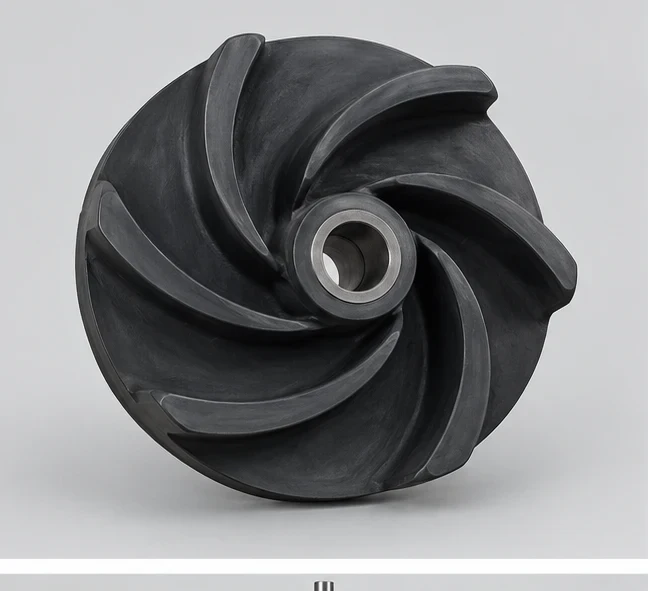

AI-generated illustration of rubber-lined sump impeller

Impeller & casing

The hydraulic end operates below the mounting level. Match its material to abrasion and liquid chemistry.

AI-generated illustration of rubber-lined wet-end casing

Shaft & column

Column and shaft length follow the sump geometry and operating liquid levels. Extension designs require their own review.

AI-generated illustration of rubber-protected vertical shaft and column

Bearing support

Keep the above-liquid drive and bearing support accessible for lubrication, inspection and removal.

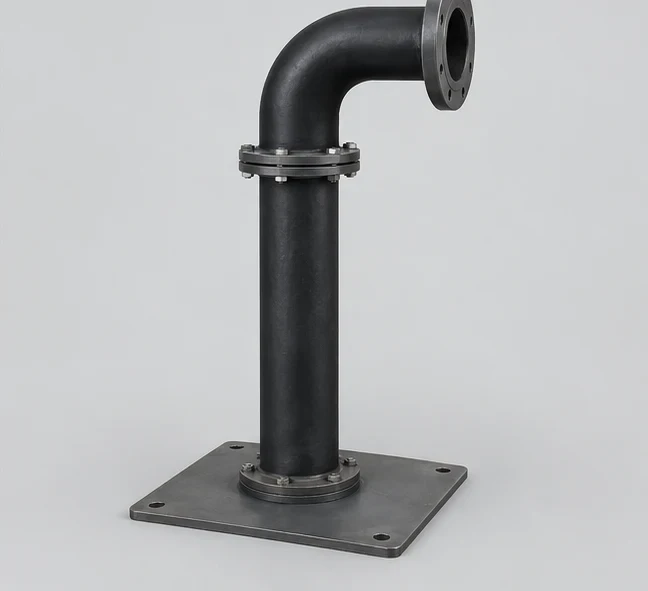

AI-generated illustration of rubber-protected discharge and mounting assembly

Discharge & installation

Support the discharge pipe independently and agree the outlet interface, lifting path and removal clearance.

Materials, sealing & duty requirements

Review itemRequired information
Wetted componentsRubber wet end and elastomer-protected components as identified in the selected assembly.
Sealing / interfacesSump arrangement; confirm shaft details
Solids informationConcentration basis, particle distribution, maximum size, hardness and shape
Liquid conditionsComplete chemistry, liquid and solids densities, operating temperature
Installation informationSump dimensions, liquid levels, immersion and mounting plate
Rubber-Lined Vertical Sump Pump: illustrative wear materials and shaft-seal components

Check the complete operating point

  • Normal and maximum flow / head
  • Density and concentration range
  • Particles, chemistry and temperature
  • Site arrangement and operating cycle

AI-generated family illustrations. The selected configuration follows the agreed model and drawing.

Installation & drive arrangement

AM-family rubber rear liner

Mounting plate & immersion

Coordinate the mounting level, shaft length, normal and minimum liquid levels, and pump removal path.

Illustration of pair of vertical sump slurry pumps

Above-liquid motor arrangement

Review the selected drive speed, alignment and access around the motor support. Extension-shaft flushing follows the documented design.

  • Mounting elevation
  • Liquid-level range
  • Removal clearance
  • Discharge support

Typical applications

Application descriptions are selection contexts. Suitability depends on the selected equipment and actual process conditions.

AI-generated industrial sump application scene

Compatible process sumps

Assess chemical constituents and the rubber specification before choosing the protected construction.

AI illustration of mineral-processing channels carrying slurry through an industrial plant

Fine-solids collection

Include particle shape and occasional oversize solids when discussing rubber wear.

AI illustration of a tailings pipeline discharging slurry into a storage pond

Tailings and process drainage

Review liquid levels, solids settling and maintenance access across the operating cycle.

Choose the supply scope

Select a scope below to carry it into the enquiry. The final equipment and documents are defined in the quotation.

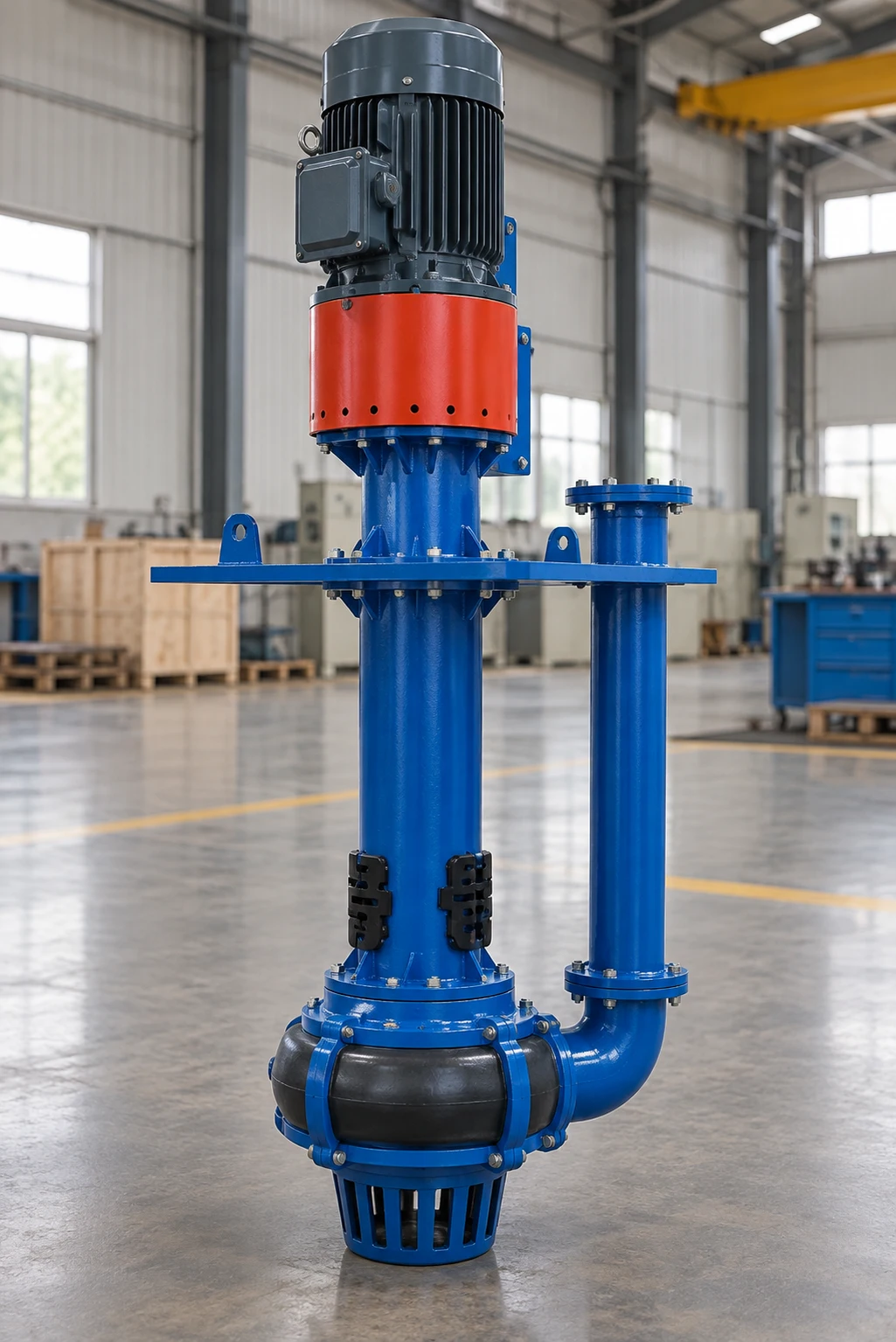

AI-generated illustration of BPR-style rubber-lined sump-pump arrangement

Pump assembly

Wet end, shaft, column and mounting components for the agreed immersion.

  • Hydraulic end and material
  • Immersion and plate details
  • Discharge interface
AM-family rubber rear liner

Motor-driven assembly

Pump and above-liquid motor with the agreed transmission and supports.

  • Motor and selected speed
  • Support and guarding
  • Alignment requirements
Illustration of pair of vertical sump slurry pumps

Installation & spares

Agree site interfaces, extension services, wear parts and documents.

  • Mounting and lifting
  • Extension flushing if applicable
  • Spares and drawings

Define what arrives with the equipment

Equipment & interfaces

Selected pump, materials, seal, drive, connections, mounting and any required auxiliary services.

Inspection & documentation

Agree drawing revision, inspection requirements, applicable acceptance criteria and the documents required with delivery.

Packing & service spares

Specify preservation, packing, identification and an initial spare-parts list appropriate to the maintenance plan.

From preparation to shipment

Slurry pump casings, impellers and mounting components arranged on the workshop floor

Components & material review

Identify component drawings and materials for the agreed pump or parts scope.

Operator working at a large machining machine in the workshop

Machining & interfaces

Check the critical faces, bores, fits and connections against the applicable drawing.

Industrial lathe for machining pump components

Inspection planning

Agree inspection points, acceptance criteria and any requested records before supply.

Pump assemblies prepared in the workshop

Packing & handover

Confirm identification, preservation, packing and the documents required for handover.

Technical documents

BP vertical sump pump photographed in the workshop

Original source catalogue

Original series introduction, drawings and available technical tables.

Illustration of an orange gravel pump with a large inlet flange and discharge outlet

Slurry family brochure

Product arrangements and original family drawings. Confirm the applicable series and model.

AI-generated illustration of BPR-style rubber-lined sump-pump arrangement

Selected curve & arrangement

Request the applicable curve, materials, dimensions and installation instructions.

Pump questions

Can I use the BP performance table for this pump?
No. The detailed operating records in the supplied catalogue are labelled BP. Obtain the curve for the proposed rubber-lined configuration and confirm its elastomer specification separately.
How is the pump selected?
Start with flow, total dynamic head, slurry density, solids concentration and size, temperature, chemistry and installation. Review these together on the applicable curve.
Are the images dimensional drawings?
Catalogue drawings show the source construction. Family exterior references and illustrative components are labelled. Use the selected model’s approved arrangement drawing for dimensions and installation.
What is included in the quotation?
The selected supply scope, materials, interfaces, inspection requirements, spares and documents must be agreed in the quotation. An illustration alone does not define the delivered equipment.
What if there is no numerical table on this page?
Send the operating requirement for a model-specific curve review. A product introduction or family envelope cannot replace a selected pump curve.
